Acrylic Large Convex Mirror
Customizable Acrylic Large Convex Mirrors, Suitable For Traffic And Road Safety.
Our acrylic large convex mirror is a lightweight and durable alternative for wide-angle viewing applications. It is commonly used as a convex security mirror in stores, warehouses, corridors, parking areas, and traffic-related environments where broader visibility helps reduce blind spots. We support round convex mirror, circular convex mirror, and rectangular convex mirror customization in different sizes, thicknesses, and processing options based on your project requirements.
| Material Options | PMMA / PC / PS |
| Mirror Shape | Round / Rectangular |
| Diameter Support | Ø100 – Ø1250 mm |
| W × H Support | 100 – 600 × 100 – 600 mm |
| Thickness Range | 0.80 – 3.00 mm |
| Viewing Distance | 2 – 55 m |
| Curvature Type | Convex Surface |
| Backing | Protective Paint / Film |
Supply & Order Info
- Flexible Order Quantity: We support both sample requests and bulk production orders based on your actual purchasing plan.
- Sample Before Bulk: Samples can be arranged for checking surface effect, thickness, color, and fabrication suitability.
- Production To Specification: Lead time is confirmed according to size, thickness, quantity, and required processing steps.
- Export Packing Standard: We use protective film, reinforced packing, and pallet packing for export orders.
- Shipment Options Available: Express, air, and sea delivery can be arranged according to urgency and order volume.
- Project-Based Custom Supply: This Product Belongs To The Mirror Insert Category, And The Above 8 Processing Services Can Be Provided.
Product Specification
Below are the common specifications for acrylic large convex mirror products, including round convex mirror and rectangular convex mirror options for different viewing distances and installation needs.
| Specifications | Circular Support Range: Ø100 – Ø1250 mm; Maximum/Minimum Supported Rectangle Size (W × H): 600 × 600 mm / 100 × 100 mm (Customizable Within This Range) |
| Thickness | Available Range: 0.80mm – 3.00mm |
| Material Options | Default: PMMA (Acrylic); Options: PS (Polystyrene) / PC (Polycarbonate) |
| Viewing Distance Range | Reference: 2m – Over 55m, Depending On Specifications |
| Viewing Angle Range | 90° – 130° |
| Reflective Coating | Vacuum-Metallized Aluminum Coating |
| Back Structure | No Integrated Housing, The Mirror Has Adhesive Backing On The Back |
| Surface Hardness | 2H – 3H, Using Acrylic Material Can Increase The Hardness Up To 6H |
| Certification | SGS, CE, RoHS, SVHC, REACH, ISO 178, ISO 527 |
| Shipping Packaging | Reinforced Wooden Crates For Overseas Shipping, Shock-Resistant |
| Surface Protection | Supplied With Protective Film; Remove After Installation |
| Typical Specification Selection For Convex Mirror | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Shape | Size (mm) | Thickness (mm) | |||||||||
| PMMA | Round | Ø102 mm (4") | 0.80 | 1.00 | 1.25 | 1.50 | ||||||
| Round | Ø305 mm (12") | 0.80 | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | |
| Round | Ø610 mm (24") | 0.80 | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | |
| Round | Ø813 mm (32") | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | ||||
| Round | Ø1016 mm (40") | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | ||||||
| Round | Ø1219 mm (48") | 2.50 | 2.70 | 3.00 | ||||||||
| Rectangle | 102×76 mm (4×3 in) | 0.80 | 1.00 | 1.25 | ||||||||
| Rectangle | 152×102 mm (6×4 in) | 0.80 | 1.00 | 1.25 | 1.50 | |||||||
| Rectangle | 203×102 mm (8×4 in) | 0.80 | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | |||||
| Rectangle | 457×305 mm (18×12 in) | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | ||||
| Rectangle | 610×381 mm (24×15 in) | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | |||
| PS | Round | Ø102 mm (4") | 0.80 | 1.00 | 1.25 | |||||||
| Round | Ø152 mm (6") | 0.80 | 1.00 | 1.25 | 1.50 | |||||||
| Round | Ø203 mm (8") | 0.80 | 1.00 | 1.25 | 1.50 | |||||||
| Round | Ø305 mm (12") | 0.80 | 1.00 | 1.25 | 1.50 | |||||||
| Rectangle | 102×76 mm (4×3 in) | 0.80 | 1.00 | |||||||||
| Rectangle | 152×102 mm (6×4 in) | 0.80 | 1.00 | 1.25 | ||||||||
| Rectangle | 203×102 mm (8×4 in) | 0.80 | 1.00 | 1.25 | 1.50 | |||||||
| PC | Round | Ø102 mm (4") | 0.80 | 1.00 | 1.25 | |||||||
| Round | Ø305 mm (12") | 0.80 | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | |
| Round | Ø610 mm (24") | 0.80 | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | |
| Round | Ø813 mm (32") | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | ||||
| Round | Ø1016 mm (40") | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | ||||||
| Round | Ø1219 mm (48") | 2.50 | 2.70 | 3.00 | ||||||||
| Rectangle | 102×76 mm (4×3 in) | 0.80 | 1.00 | 1.25 | ||||||||
| Rectangle | 152×102 mm (6×4 in) | 0.80 | 1.00 | 1.25 | 1.50 | |||||||
| Rectangle | 203×102 mm (8×4 in) | 0.80 | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | |||||
| Rectangle | 457×305 mm (18×12 in) | 1.00 | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | ||||
| Rectangle | 610×381 mm (24×15 in) | 1.25 | 1.50 | 1.70 | 2.00 | 2.25 | 2.50 | 2.70 | 3.00 | |||
Optional Up To 6H Hard Coating For Greater Scratch Resistance
Our convex mirror hardening can be upgraded up to 4H – 6H upon request, while the standard finish is typically 2H – 3H. This optional treatment improves scratch resistance, surface durability, and overall performance in daily use and further processing.

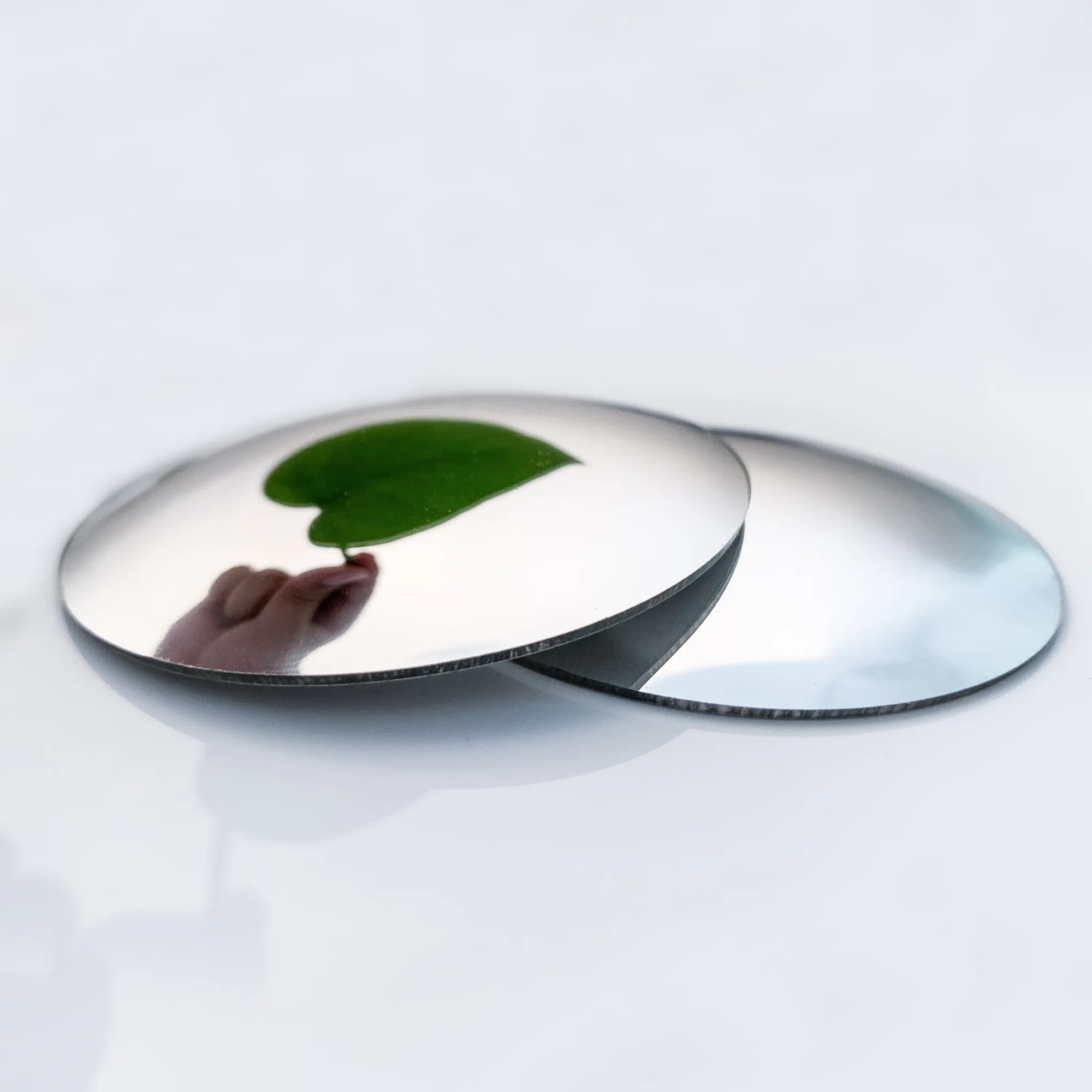

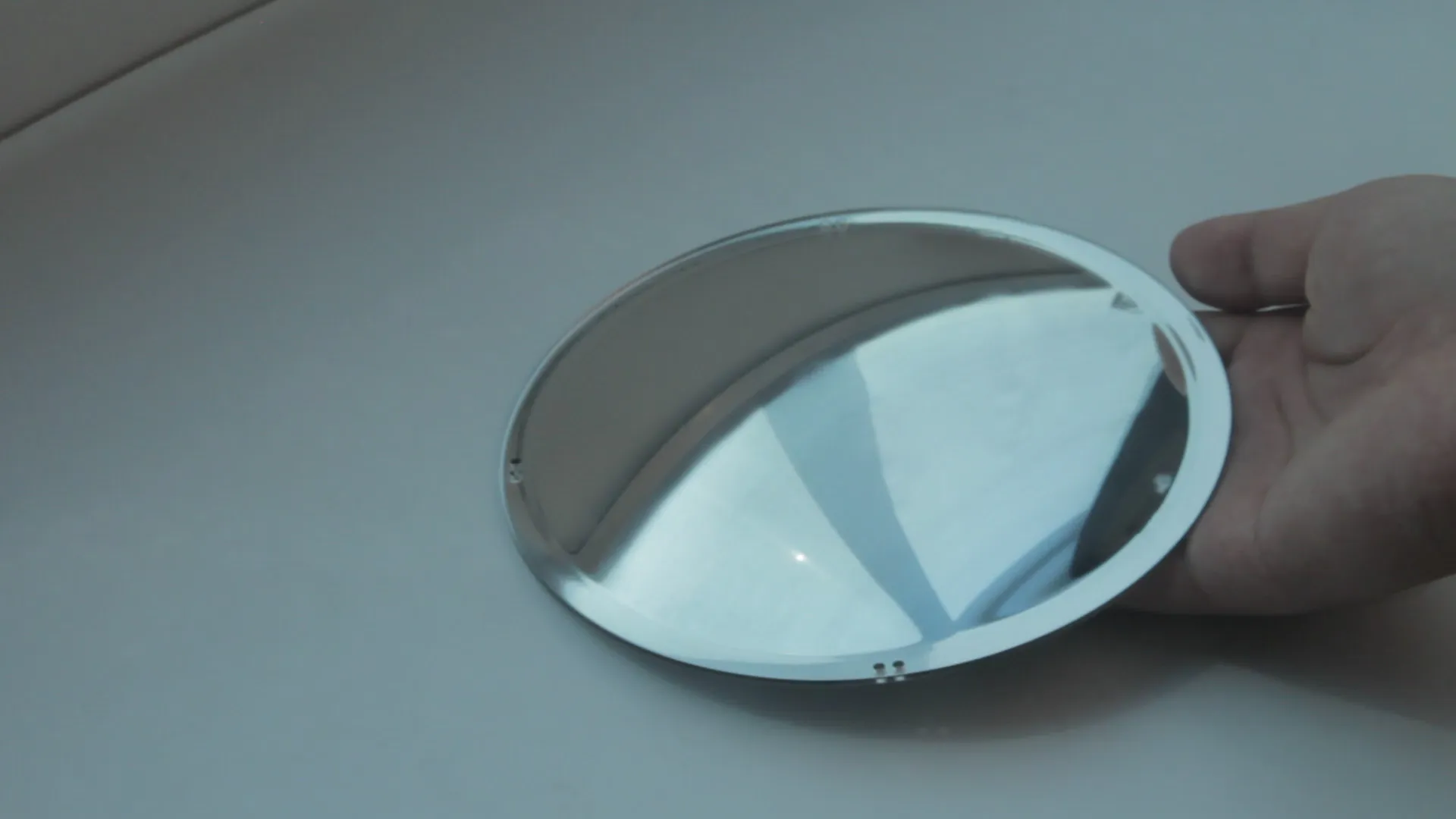

Custom Convex Mirror With Annular Plane Machining For Easier Mounting
- Precise Annular Flat Surface
- Easier Mounting And Positioning
We provide Annular Plane Machining for convex mirror processing to create a precise flat ring area around the mirror surface. This machining method helps improve fitting, mounting, bonding, and assembly, making the convex mirror easier to install and more convenient for practical product use.
If you meet our minimum order quantity, we can provide free ring-shaped surface finishing for you.

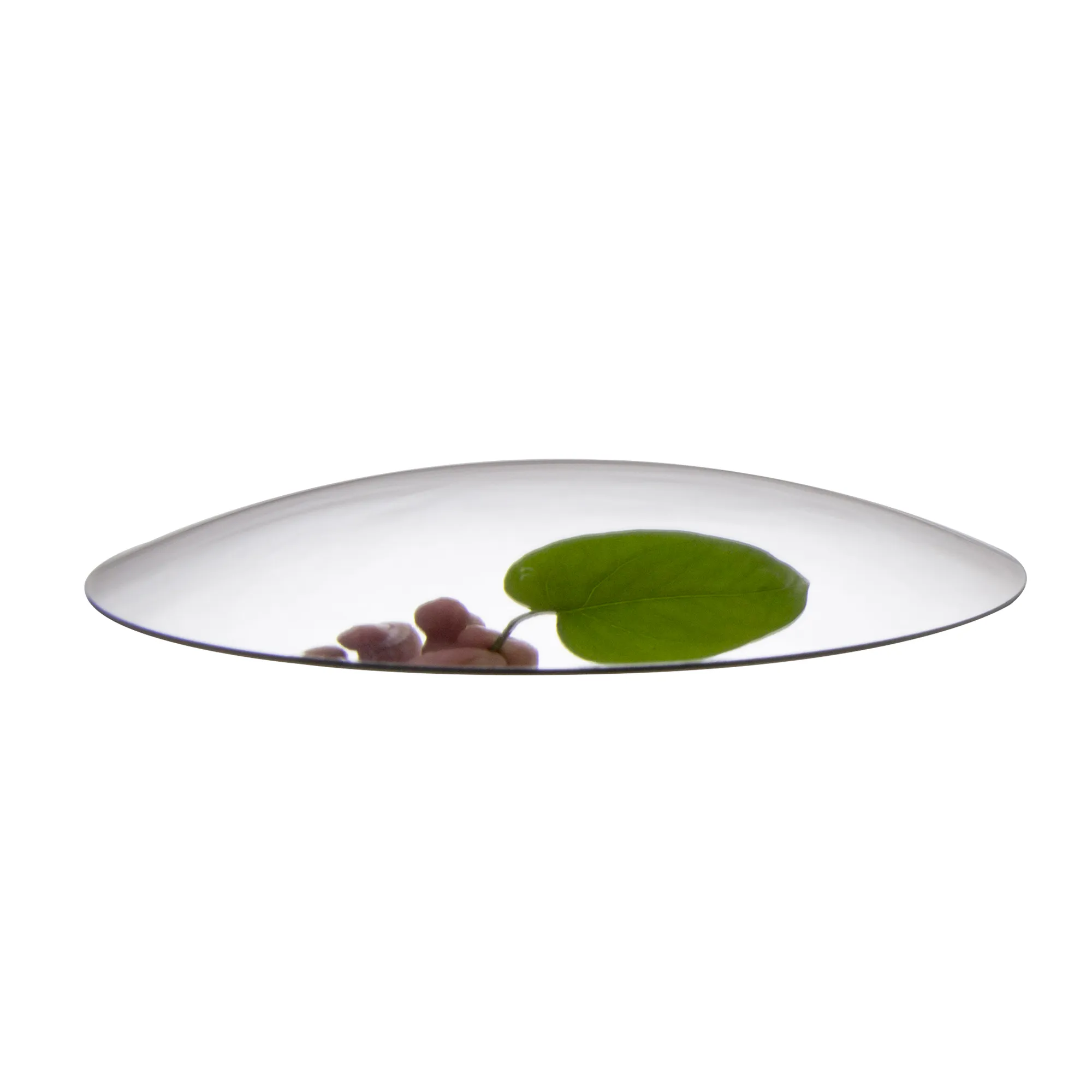

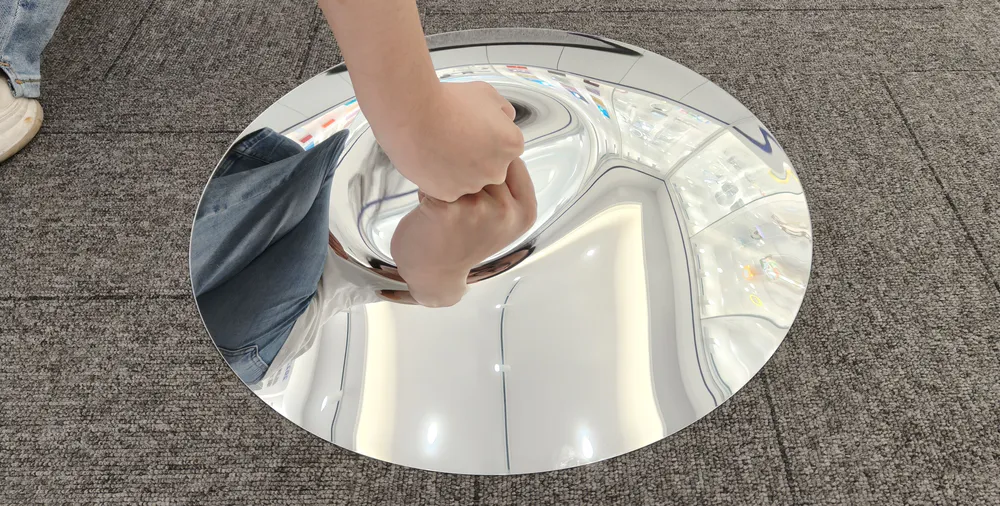

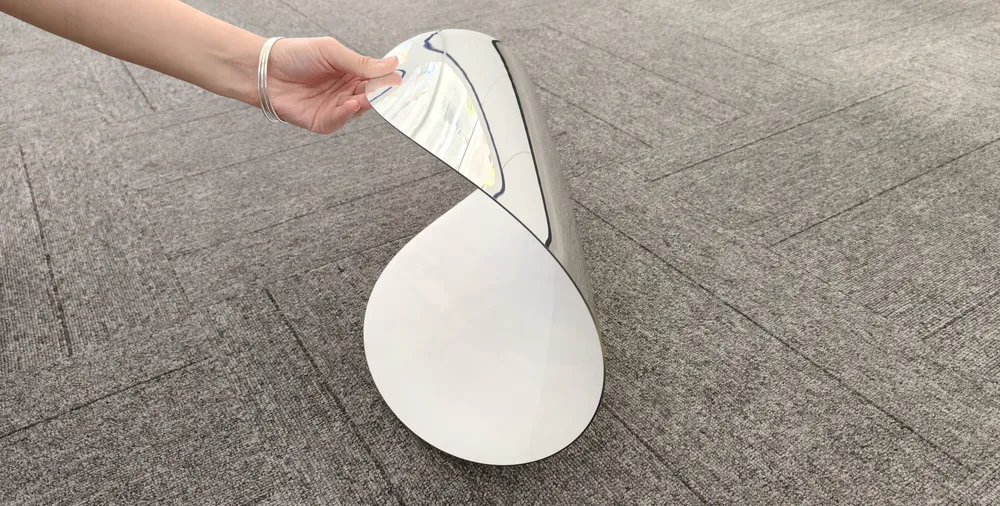

High Flexibility, Strong Impact Resistance, Not Easily Broken, And Safer
Our acrylic convex mirror is designed to combine flexibility with impact resistance, making it a safer and more dependable option than glass in daily use. For convex security mirror applications in public, commercial, and industrial environments, this material helps reduce the risk of cracking, shattering, or sudden breakage during handling and installation.
For customers who value safety, durability, and stability, our mirrors can be a choice that gives you peace of mind.

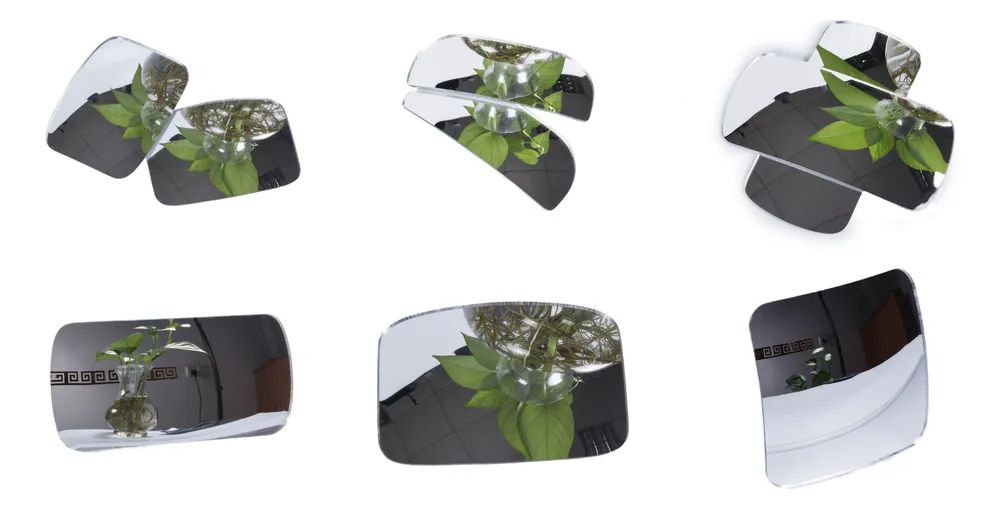

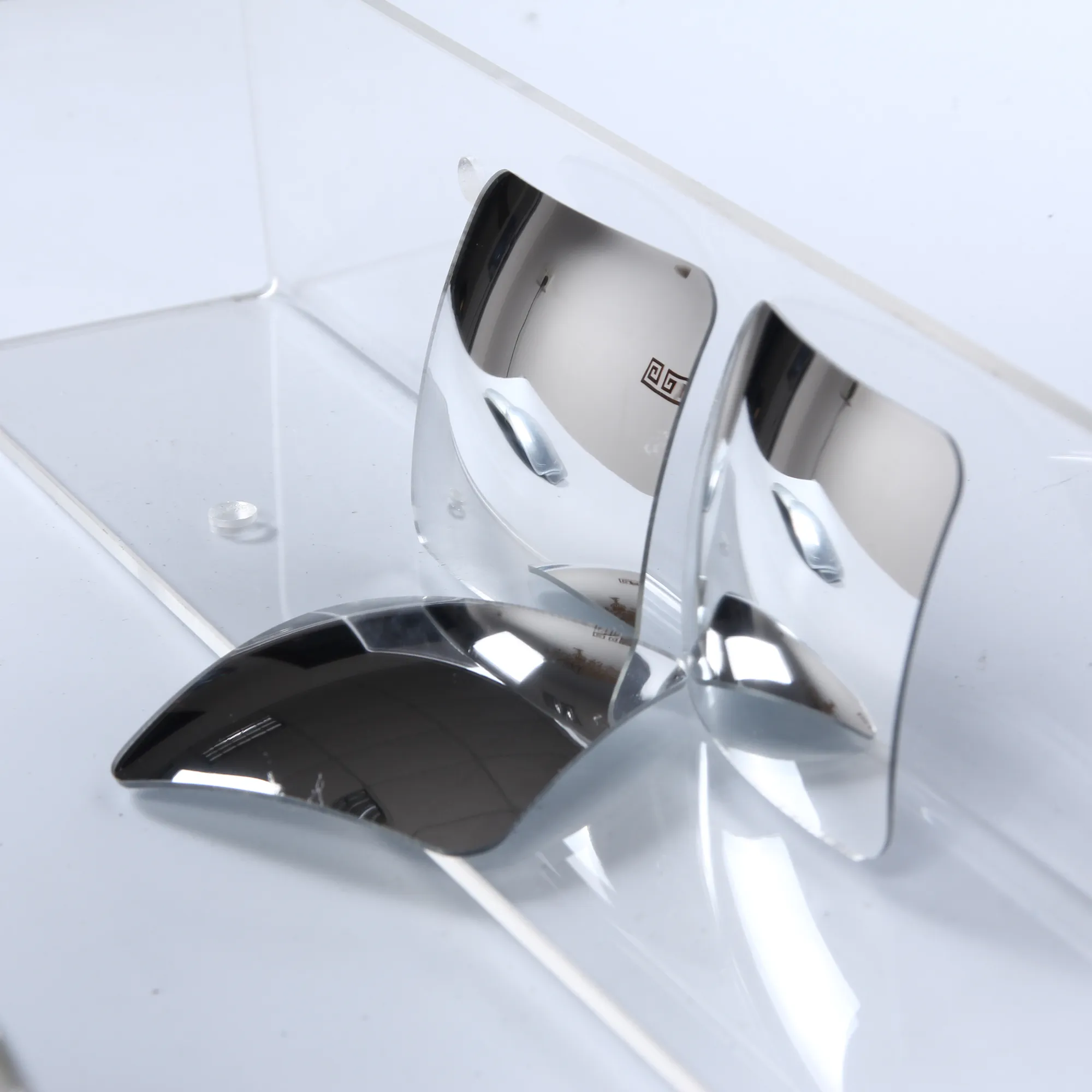

Dimensions, Size, And Shape Can All Be Customized, Meet All Your Needs
- Custom Sizes For Different Applications
- Produced To Match Your Needs

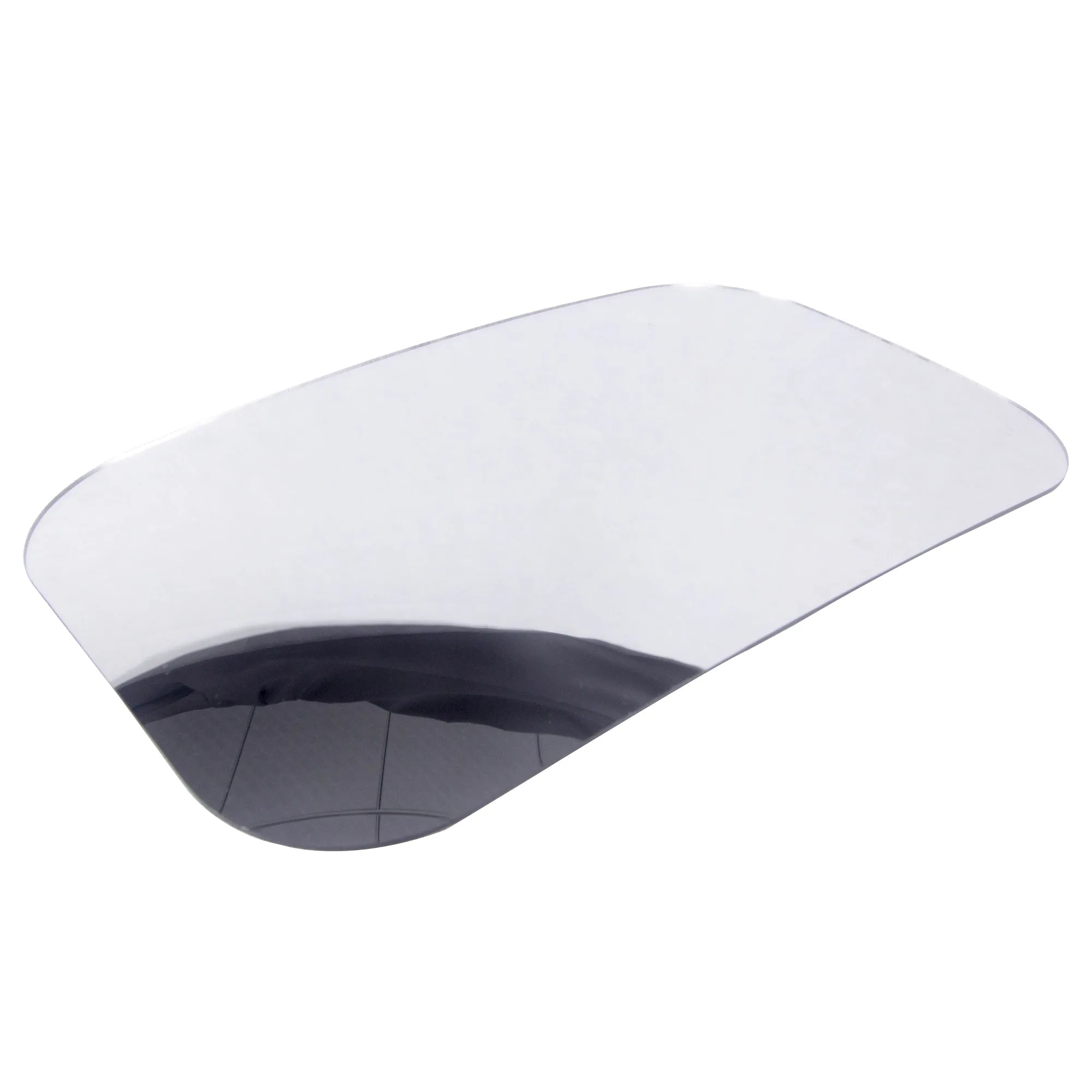

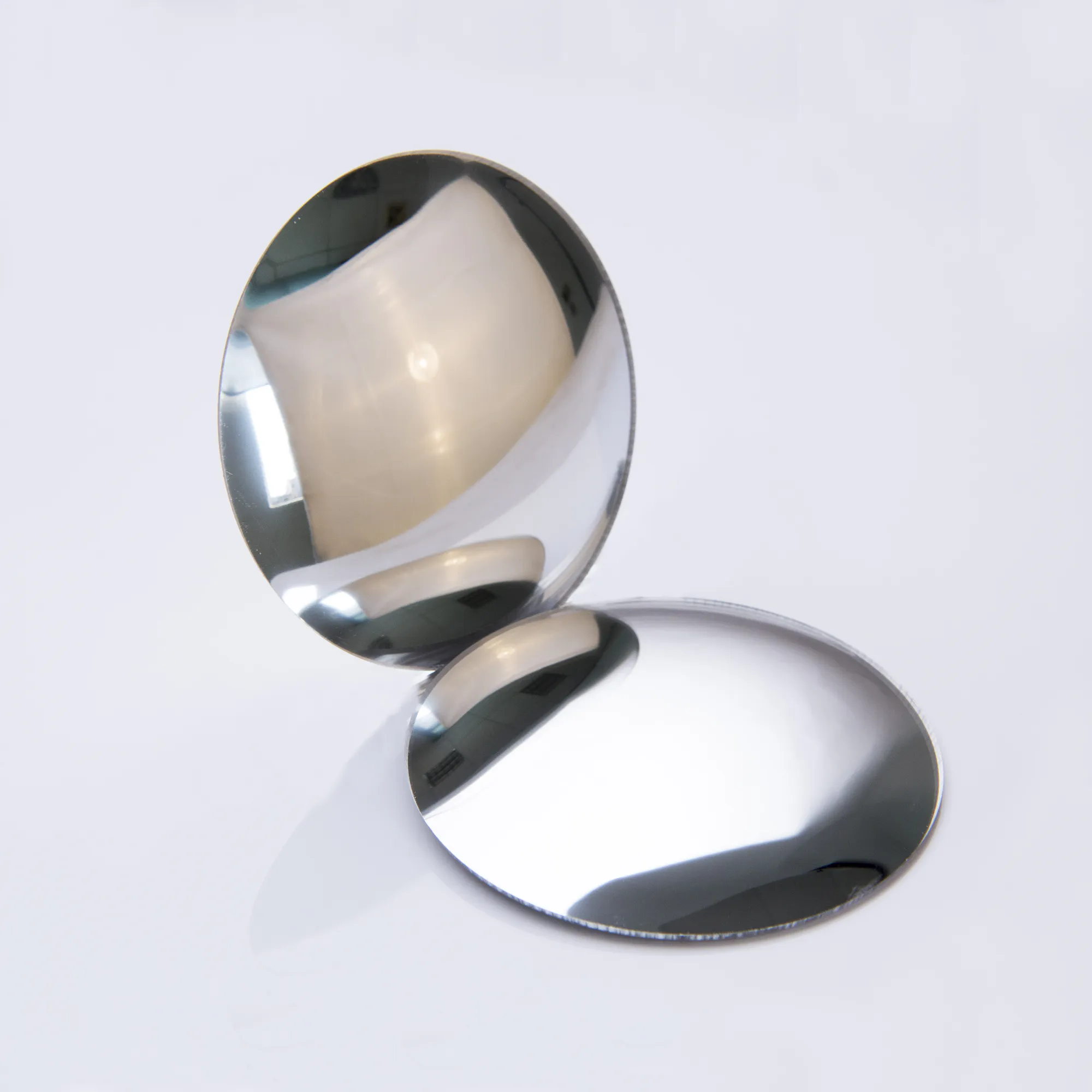

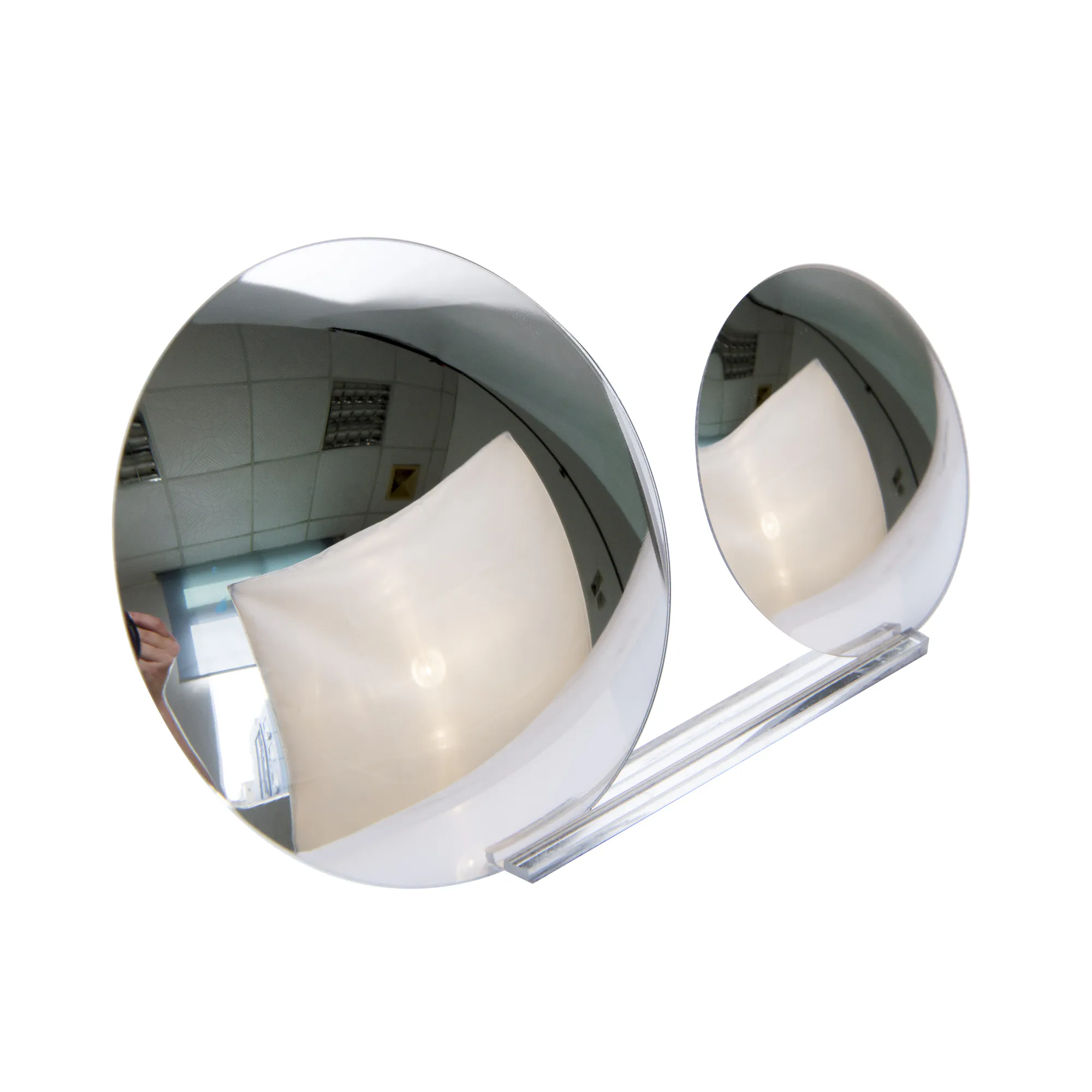

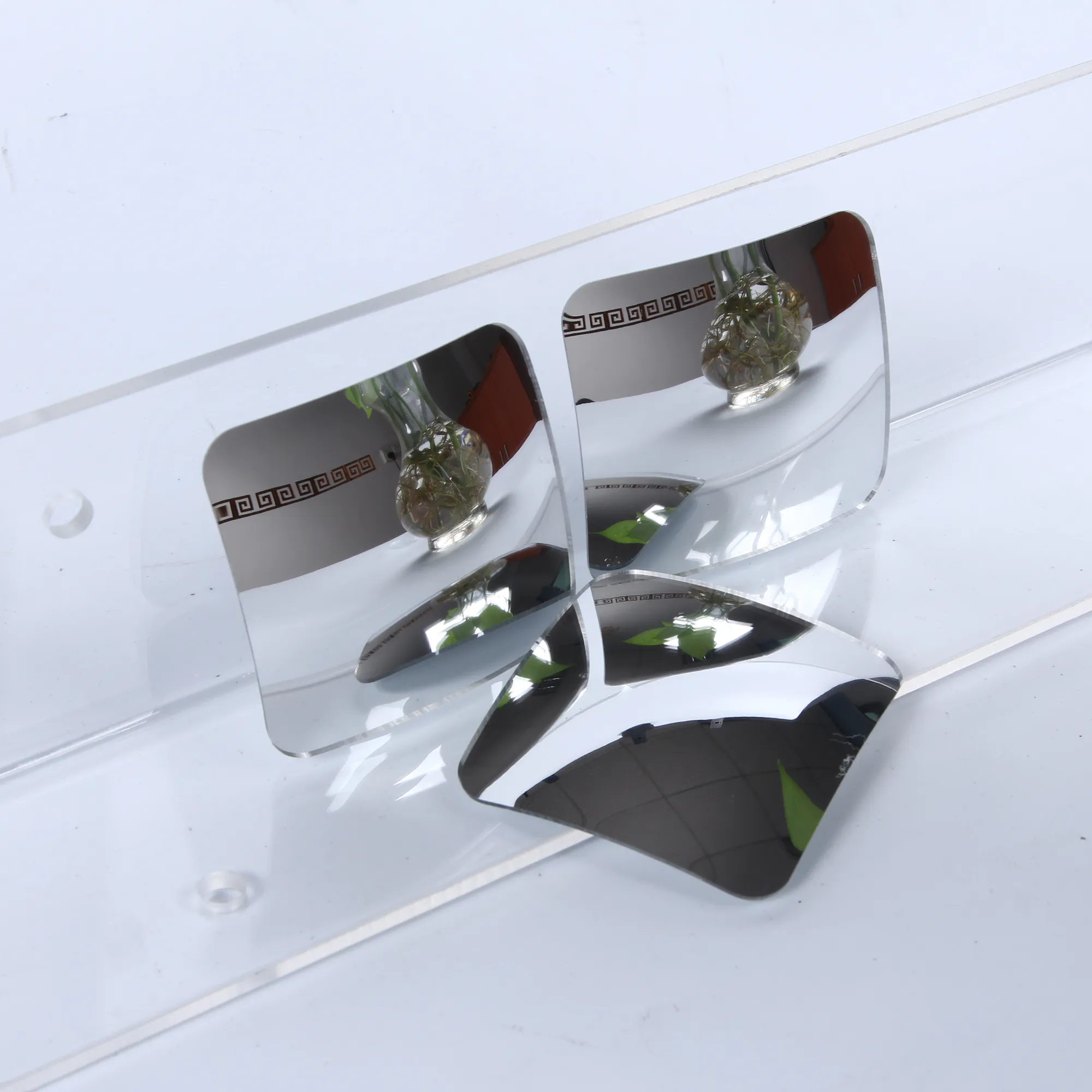

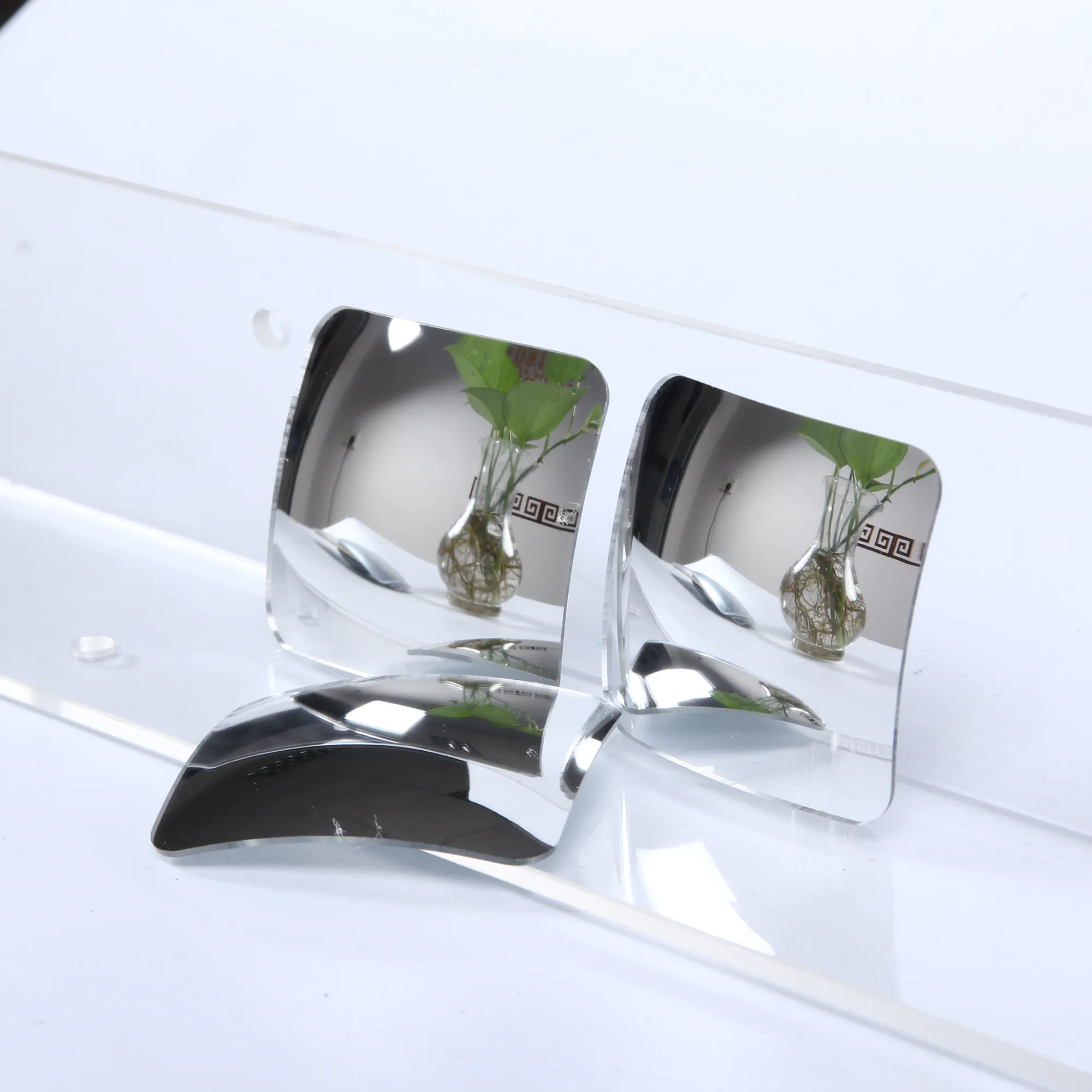

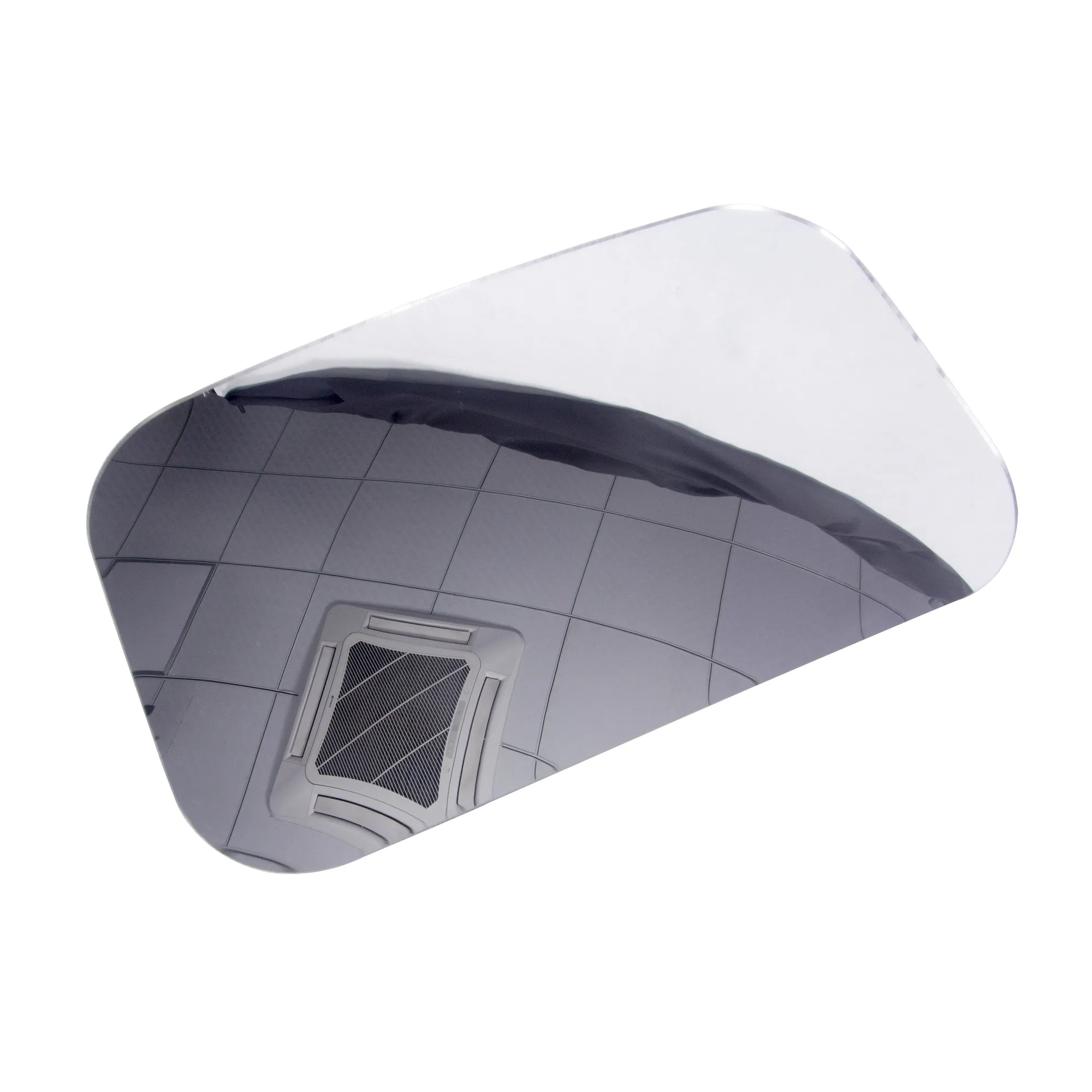

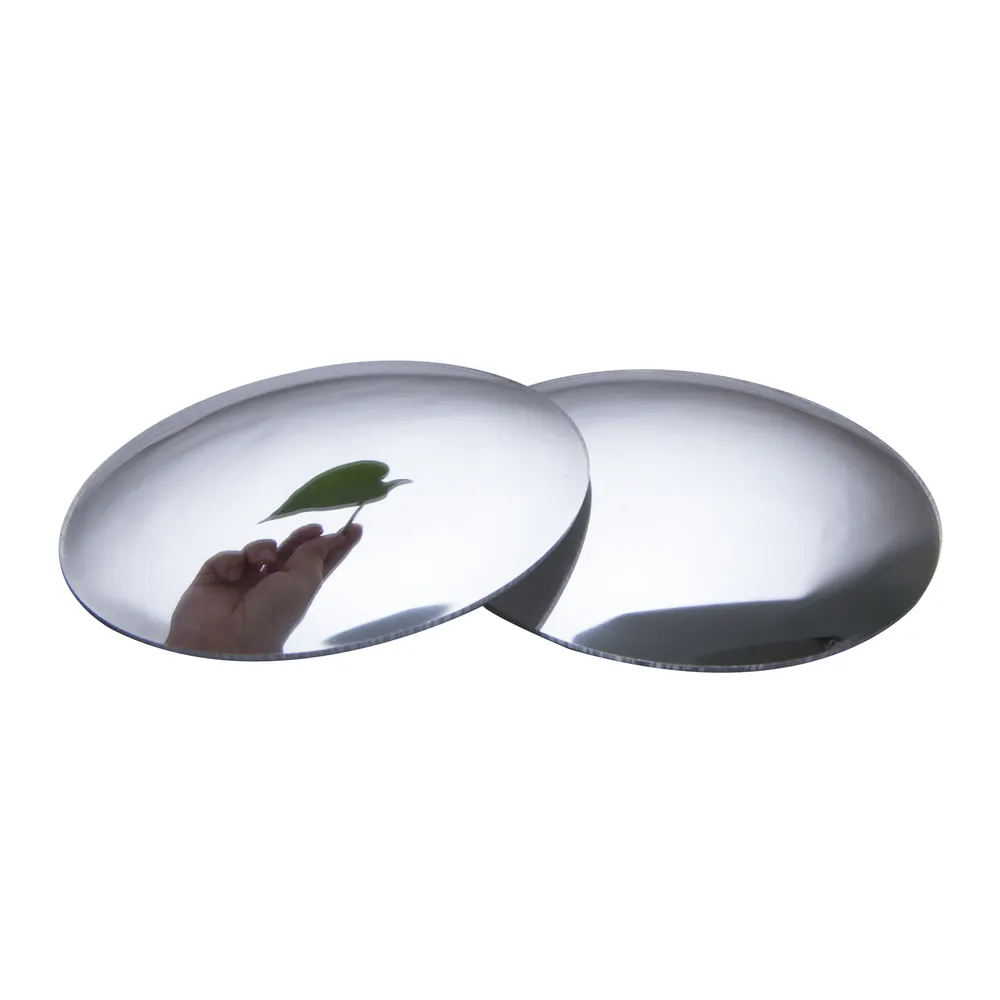

We support acrylic convex mirror customization in a wide range of dimensions, curvatures, and shapes to match different installation and viewing requirements. Whether you need a round convex mirror for general safety use, a circular convex mirror for compact installations, or a rectangular convex mirror for wider side viewing, we can process the mirror according to your project needs.
With more flexible customization options, you can develop products with greater freedom while keeping specifications aligned with your purchasing and production requirements.
FAQ
Q: What is an acrylic convex mirror used for?
A: An acrylic convex mirror is commonly used to expand the viewing angle in traffic, warehouse, retail, corridor, and parking applications where blind spots need to be reduced.
Q: Are plastic convex mirrors suitable for outdoor use?
A: Yes. Outdoor models are usually built with weather-resistant parts and are designed to handle sunlight, rain, and changing temperatures.
Q: Can a convex mirror show exact distance or speed?
A: No. Convex mirrors are meant to improve visibility, but they should not be used to judge exact speed, distance, or position precisely.
Q: Do you offer round convex mirror and rectangular convex mirror options?
A: Yes. We support both round convex mirror and rectangular convex mirror production in different sizes and thicknesses to match different installation positions and viewing needs.
Q: Are plastic convex mirrors safer than glass mirrors?
A: Yes. Plastic convex mirrors are lighter and more impact resistant, so they are less likely to shatter during use, transport, or installation.
Q: Do plastic convex mirrors need much maintenance?
A: No. In most cases, they only need routine checks to keep the reflection clear and the mounting stable.
